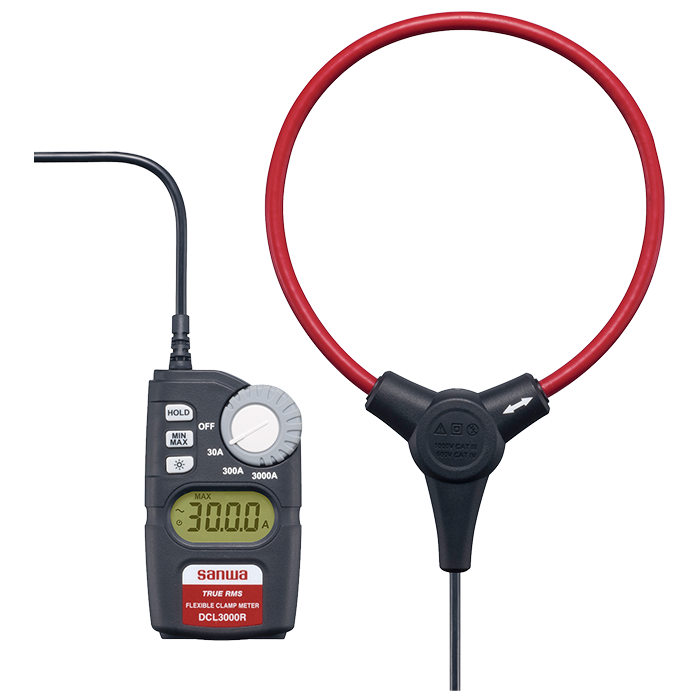

Sanwa DCL3000R Clamp Meter:
The Sanwa DCL3000R Clamp Meter is a specialized tool combining powerful current measurement (up to 3 kA True RMS), portability, and safety—all wrapped in a compact, flexible design. It’s ideal for demanding environments where precision, reach, and reliability are non-negotiable.
Key Features:
- Flexibility facilitating conductor clamping even in a narrow space
- MAX/MIN value hold
- Air-core coil for weight reduction
- Auto power off (15 min./Cancelable)
Specifications:
| Function | Measuring range | Best accuracy | Resolution |
|---|---|---|---|
| ACA | 30/300/3000A | ±(3.0%+5) | 0.01A |
| Sampling rate | Approx. 2 times/sec. |
| Bandwidth | 45-500Hz |
| Display | 3150 |
| Clamp diameter/Conductor size | Approx. Φ150mm max. |
| Max. overload protection input | AC5000A |
| Battery | LR03×2 |
| Battery life | Approx. 130 hrs. (Alkaline battery/Backlight off) |
| Size/Mass | H120×W70×D26mm (exc CT)/approx. 300g |
| Cable length | Approx. 1.8m |
| Safety standards | IEC61010 CAT.Ⅳ600V |
