What is a Clamp Meter?

By July 13, 2025 No Comments

In the world of electrical measurements, accuracy and safety are crucial. Whether you’re a professional electrician, an engineer, or a DIY enthusiast, one tool that often stands out for its versatility and ease of use is the clamp meter. But what exactly is a clamp meter, and why is it an essential instrument for electrical testing?

In this blog, we’ll break down what a clamp meter is, how it works, its types, and the benefits of using one.

🔧 What is a Clamp Meter?

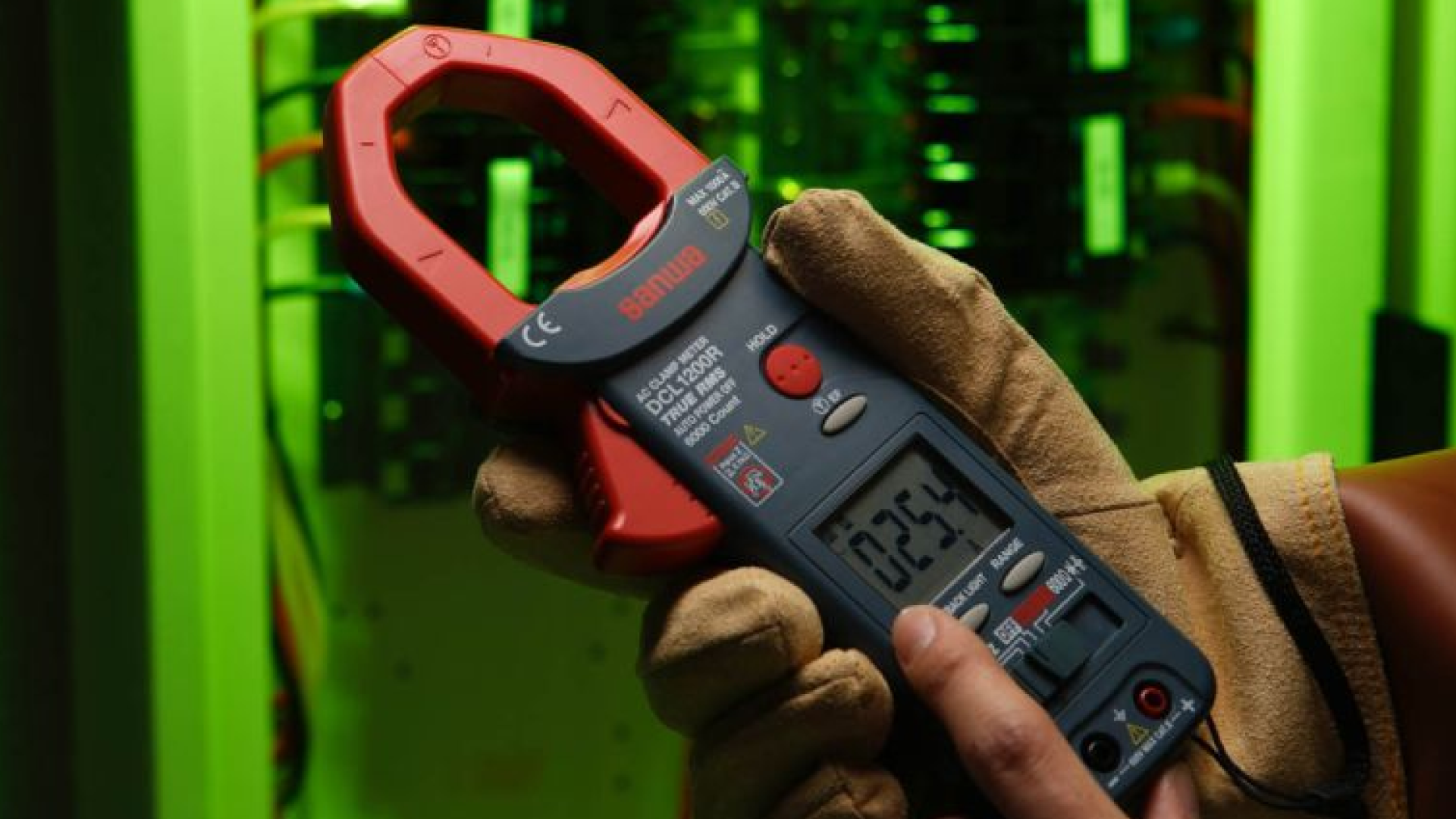

A clamp meter is an electrical test tool that combines a basic digital multimeter with a current sensor. It is used primarily to measure the current flowing through a conductor without having to disconnect it.

Unlike traditional multimeters, which require you to make contact with a wire to measure current, a clamp meter features a hinged jaw that clamps around a conductor, making it possible to measure current safely and conveniently without interrupting the circuit.

⚙️ How Does a Clamp Meter Work?

Clamp meters work on the principle of electromagnetic induction. When current flows through a conductor, it generates a magnetic field. The clamp jaws, which are shaped like a split-core transformer, detect this magnetic field and convert it into a measurable value displayed on the screen.

Modern clamp meters also include features to measure:

  • Voltage (AC/DC)

  • Resistance

  • Continuity

  • Frequency

  • Temperature (in some models)

  • Capacitance

🧰 Common Types of Clamp Meters:

  1. AC Clamp Meter: Measures alternating current only.

  2. AC/DC Clamp Meter: Measures both alternating and direct current.

  3. Flexible Clamp Meter: Uses a flexible current probe for measurements in tight spaces.

  4. True RMS Clamp Meter: Provides accurate readings even for non-linear or distorted waveforms.

💡 Key Benefits of Using a Clamp Meter:

  • Non-Invasive Testing: No need to break the circuit to measure current.

  • Enhanced Safety: Reduces the risk of electrical shock.

  • Time-Saving: Faster current measurement, especially in busy panels.

  • Multifunctional: Combines multiple measurement capabilities in one tool.

  • Portable & User-Friendly: Lightweight, handheld, and easy to use.

🧑‍🔧 Where is a Clamp Meter Used?

Clamp meters are widely used across various industries and applications:

  • Electrical troubleshooting and maintenance

  • HVAC systems inspection

  • Industrial machinery monitoring

  • Renewable energy systems (like solar panels)

  • Automotive diagnostics

  • Construction site electrical checks

📌 Tips for Using a Clamp Meter Safely:

  • Always check the meter’s CAT rating to match your application.

  • Make sure the meter is set to the correct function before testing.

  • Do not clamp around more than one conductor if you’re measuring current.

  • Use personal protective equipment (PPE) when working with high voltages.
